The comparison of conveyor belt and roller conveyor

belt conveyor and roller conveyor
belt conveyor and roller conveyor

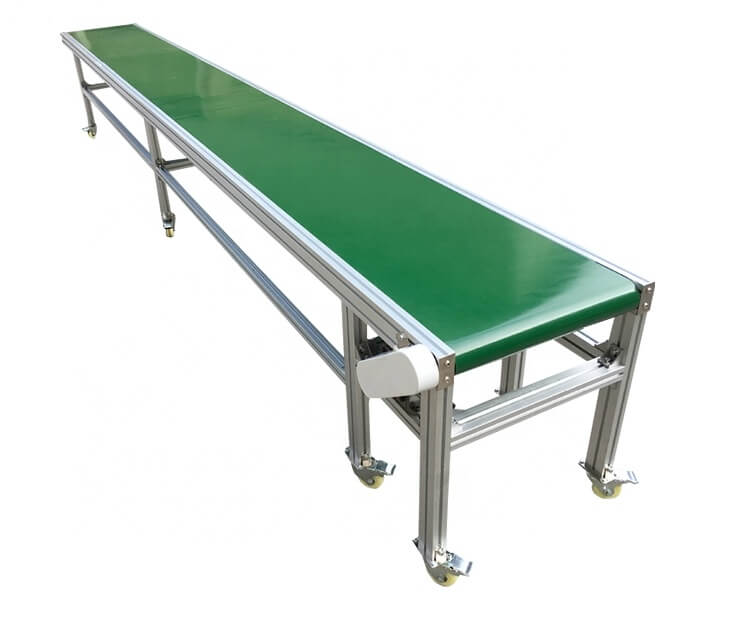

Belt conveyor line:

The belt line uses the belt to drag the working plane to transfer the movement to achieve the purpose of the production process. Some people call this kind of belt assembly line a belt conveyor or a conveyor belt. This belt conveyor adopts a combined assembly mode, and the number of stations can be set according to process requirements. The belt conveyor station is equipped with power sockets, process drawing boards, lighting, etc., so that the entire process flow is fast and orderly.

Technical index:

1. Fluorescent lamp
2. Lampshade
3. Process drawing board
4. Work station bracket
5. Instrument form board
6. Belt
7. Aluminum alloy profile
8. Aluminum alloy profile
9. Toolbox
10. Adjustable foot hoof

Name of Belt Conveyor Parts
Belt conveyor indicators and parameters

Line length (L1)
Selected according to customer process needs

Line body width (B1)
Selected according to customer process needs

Belt width (B2, B3)
50.8, 100

Single station length (L2)
Selected according to customer process needs

Line height (H1)
2200mm

Working surface height (H2)
750mm±25mm (recommended value)

Running speed
Recommendation: mechanical fixed type, electromagnetic speed control type, frequency conversion speed control type

Operation mode
Continuous, beat

Conveying medium
PVD anti-static belt, rubber belt, canvas belt

Scope of application
Product assembly and debugging of electronics, instruments, meters, small electromechanical and household appliances

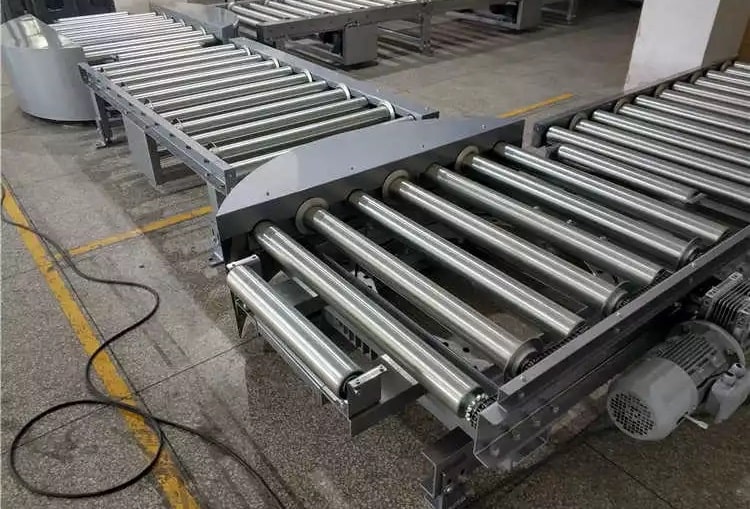

Roller conveyor line:

The roller is used to drag the working plane to transfer the movement to achieve the purpose of the production process. The assembly line adopts a combined assembly mode, and the number of stations and the distance between rollers can be set according to process requirements.

Technical index:

Line length
Selected according to customer process needs

Line body width
Selected according to customer process needs

Transport power
“Set of roller chain”

Roller pitch
Selected according to customer process needs

Height of working table
Recommended value

Working surface width
750±25mm (recommended value)

Running speed
Recommendation: mechanical fixed type, electromagnetic adjustment type, frequency conversion speed adjustment type

Operation mode
Continuous, beat

Scope of application
Product assembly, transportation and packaging of electromechanical and household appliances
