Pipe&hose coil wrapper

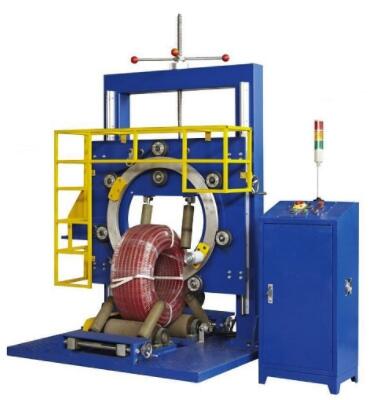

Economical pipe and hose coil wrapping machine, easy to do operation and suitable for using variant types of packing material. The machine has a wide range of applicability which allows to pack both large and small coils and reels of pipe and corrugated hose. Make the tight and nice wrapped package to protect the products of solid wall pipes and corrugated hose reels.

Model: EM-H300-D

cheap price pipe and hose coil wrapping machine USA
  • Vertical coil wrapping machine with simple structure;
  • Multiple wrapping materials are available for choosing, including stretch film, composite paper and knit belt;
  • PLC program controls the machine, simple operation by buttons;
  • Side rollers to clamp the reels of hose and pipe, fixing it in the center;
  • Main board adjustable for the best wrapping position for different sized reels;
  • Safety guard to cover the moving parts on the machine.


Coil ID250-500mm/customized
Coil OD500-800mm
Coil width80-300mm
Max load100Kg
Ring rotation speed20-80rpm
Roller speed2-4m/min
Power supply380V, 3Ph, 50Hz
