Tire wrapping machine

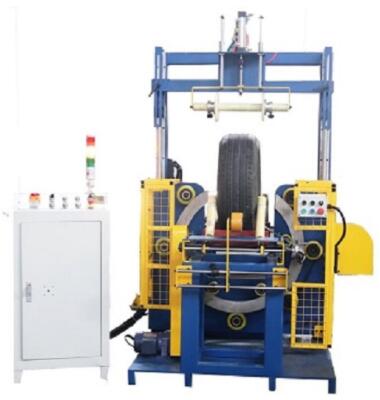

This coil stretch wrapping machine is designed with the ring opening towards the upside. It’s suitable for wrapping motor tire which has light weight and moderate dimension. The operation height is just confortable for workers to load and discharge the tires without bending, which avoid back injuries for the long term.

Model: EM-T200-U

cheap price vertical tire wrapping machine, packaging machine
  • Vertical coil wrapping machine with ring opening towards the upside;
  • Multiple wrapping materials are available for choosing, including stretch film, composite paper and knit belt;
  • PLC program controls the machine, simple operation by buttons;
  • One extra control box on the safety guard, make the operation be more convenient;
  • Top press roller to clamp the tires, fixing it during the wrapping;
  • Optional to add the tape dispenser on the machine, apply logo tape to the wrapped tires.

Parameter:

Coil ID300-600mm/customized
Coil OD450-850mm
Coil width50-200mm
Max load100Kg
Ring rotation speed20-110rpm
Roller speed2-4m/min
Power supply380V, 3Ph, 50Hz

Operation video:
