M type pallet stretch wrapper

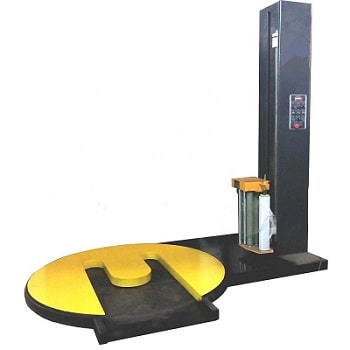

This M type pallet stretch wrapping machine has the special shape turntable of M shape. The machine is specialized for packaging skid loads by loading and unloading via pallet jack or pallet truck. The machine increase the total work efficiency and avoids the back injuries than manual wrapping.

Model: TP-M165

M type turntable pallet stretch wrapping machine, pallet packer, pallet stretch wrapper
  • Automatic pallet stretch wrapping machine with photoelectricity and limit switch sensoring units;
  • PLC program system and display/HMI for your operation convenience;
  • One button click to start the wrapping of the machine;
  • M type turntable with ramp, suitable for loading and unloading by pallet jack/pallet truck;
  • Pre-stretch function make tighter wrapping than manual wrapping and saves material;
  • Improves your packaging efficiency much higher than manual wrapping by hands.


Turntable diameter1650mm/customized
Suitable skid dimensions1.2*1.2m/1.2*1.0m/1.0*0.8m
Wrapping height2000mm
Max load800Kg
Turntable speed12rpm
Pre-stretch ratio250%/300%
Power supply 220V, 1/3Ph, 50/60Hz
