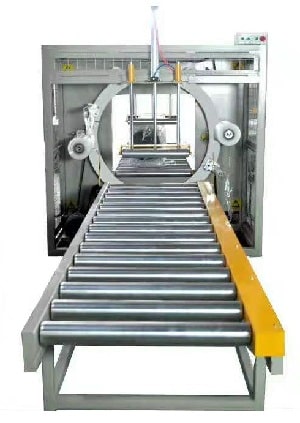

Orbital bundle wrapper

Fully automatic horizontal orbital stretch wrapping machine for packing bundles, bar, rods, profiles and as well as lumber, timber, wooden posts by wrapping with stretch film. Automatic bundling machine with PLC program system and automatic conveyors.

Model: HM-A1000

horizontal orbital bundle stretch wrapping machine
  • Fully automatic working mode, convenient to do operation;
  • Motorized roller table for the bundle in-feeding and out-feeding;
  • Suitable to used for wrapping cabinets, bundles of steel rods, lumber, wooden posts…..;
  • Machine to be controlled by PLC program system with unmanned operation;
  • The wrapped bundle is tight and nice, good protective wrapping for your goods;
  • Dual film spools are available, to improve the wrapping efficiency.


Packing length800mm-unlimited
Width400-800mm (available to customize)
Height100-400mm (available to customize)
Max load2000Kg
Film rollID: 76mm, width: 200mm
Ring rotation70-80rpm

Operation video:
