Wire coil wrapper

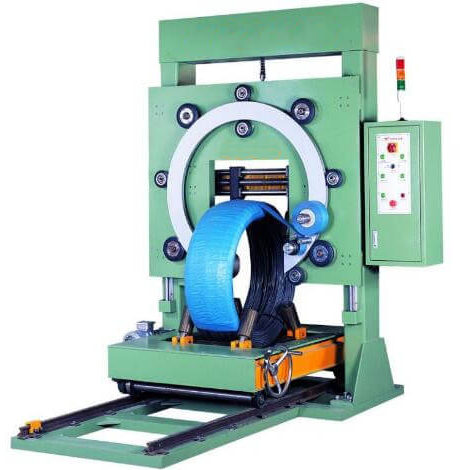

Wire coil wrapping machine with a trolley moving on rails. This design is for using hoist or crane to load and unload the heavy wire coils/wire spools to the wrapping station. This design avoids the collision which may happen between the coils and machine, it removes the barrier for the loading and discharging by hoist.

Model: EM-W800-T

wire coil stretch wrapping machine
  • Vertical coil wrapping machine with trolley on rails;
  • A model suitable for loading and unloading by hoist/crane;
  • Multiple wrapping materials are available for choosing, including stretch film, composite paper and knit belt;
  • PLC program controls the machine, installed photoelectricity to detect the wire coils;
  • Large supportive rollers for rotating the wire coils;
  • Side rollers to clamp the wire coils, fixing it in the center.


Coil ID500-900mm
Coil OD800-1200mm
Coil width300-600mm
Max load3000Kg
Ring rotation speed20-70rpm
Roller speed2-4m/min
Power supply380V, 3Ph, 50Hz
