Mechanical upending machine for steel coil with innovative technology

Upender-and-tilter
Upender-and-tilter
Product Description

Mechanical upending machine for steel coil with innovative technology

Description of this product:

Name
FHCT-02
FHCT-05
FHCT-08
FHCT-10
FHCT-20
FHCT-30
Capacity
2T
5T
8T
10T
20T
30T
Speed
30-60sec
30-60sec
40-60sec
40-60sec
50-90sec
60-120sec
Driving mode
Two chains
Two chains
Two chains
Four Chains
Four Chains
Four Chains
Power
1.5KW
1.5KW
2.2kW
2.2kW
4.2KW
5.5KW
Control Mode
Panel
Panel
Panel
Panel
Panel/Remote
Panel/Remote
Power supply
Per demand
Per demand
Per demand
Per demand
Per demand
Per demand

Technical Feactures

For turning over the coil for 90 degree. It’s widely used in industries of metallurgy, stamping, metal plate, mold, paper making, steel strip, coil, barrels, and etc.
1. Special double chain drive, oblique gear & worm speed reducer is adopted.
2. Four-roller device wrapped with polyamide adhesive.
3. Inverter control is adopted, fast, stable & safe.
4. Separate control panel allows remote operation.
5. Multiple position limit system ensures safe operation.
6. The machine can be stopped at random; object will stay in current position.

Note: customized solution available

Detailed Images

Detailed Images of motor coil tilter

Mechanical Type Driving

Motor and gear with chain to driving the upender and tilter which is a realiable and easy maintaining designing. That is the most popular type designing in market.

Hydraulic Type Driving

Hydraulic station and cyclinder for driving the upender and tilter to handle the heavy load with fast speed to ensurance the operation safety.

Application

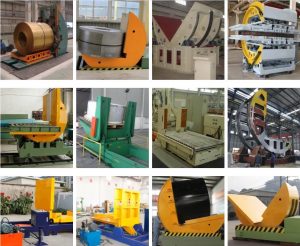

We providing customized tilter and upender to help user easy the heavy loading handing. The load can be steel coil, mold, car, timplate, board…Weight from 1-50T. We go all solution per your need.

Upender-and-tilter
Upender-and-tilter
